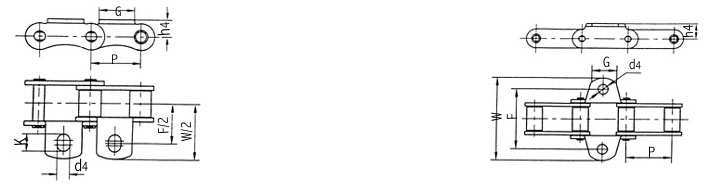

 S型、C型钢制滚子链附件 S TYPE、C TYPE STEEL ROLLER CHAIN ATTACHMENTS |
|
 |
| |
ISO487 GB10857
| 链号 |
P |
G |
F |
W |
h4 |
d4 |
K |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
| S55AK1Y |
41.4 |
25.0 |
63.6 |
90.4 |
15.5 |
8.6 |
12.0 | |
| 链号 |
P |
G |
F |
W |
h4 |
d4 |
| mm |
mm |
mm |
mm |
mm |
mm |
| CA550BK1x |
41.4 |
22.0 |
50.8 |
72.0 |
14.7 |
8.5 | |
| 链号 |
P |
G |
F |
W |
h4 |
d4 |
K |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
| CA550BK1y |
41.4 |
22.0 |
52.5 |
76.2 |
12.7 |
8.3 |
10.0 | |
| 链号 |
P |
G |
F |
W |
h4 |
d4 |
| mm |
mm |
mm |
mm |
mm |
mm |
| CA550BK1 |
41.4 |
22.23 |
53.95 |
70.6 |
12.7 |
9.9 | | |
| |
|
|
|
|
