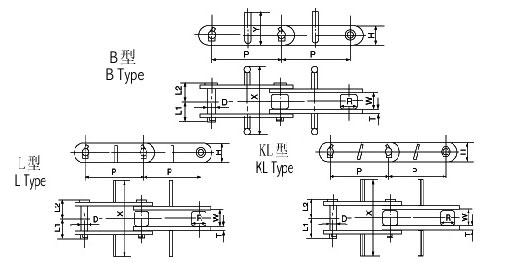

链 号	节距	滚子直径	内节内宽	链 板 参 数				销 轴 参 数			抗位载荷
											Q
											KN
	P	R(max)	W(min)	T	H	X	Y	D	L1	L2	普通型	强力型
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
FW09101	101.6	26.5	27.6	6	32	135	60	12.7	36	30.6	90	160
FW19152	152.4	34.9	36.5	8	45	175	80	15.9	47.1	40.4	190	285
FW19200A	200	34.9	36.5	8	45	245	110	15.9	47.1	40.4	190	285
FW19200B	200	34.9	36.5	8	45	325	140	15.9	47.1	40.4	190	285
FW25200A	200	40.1	51.8	9	50	245	110	19.1	59.8	51.7	250	400
FW25200B	200	40.1	51.8	9	50	325	140	19.1	59.8	51.7	250	400
FW25200C	200	40.1	51.8	9	50	400	170	19.1	59.8	51.7	250	400
FW32200A	200	44.5	57.6	9	65	325	140	22.2	62.8	55.7	320	510
FW32200B	200	44.5	57.6	9	65	400	170	22.2	62.8	55.7	320	510
FW32250	250	44.5	57.6	9	65	470	200	22.2	62.8	55.7	320	510
FW50250	250	50.8	67.4	12	80	470	200	25.4	74.9	68.1	500	700
FW50200	200	50.8	57.6	9	65	400	170	25.4	64.2	57.3	-	500
FW50300	300	50.8	67.4	12	80	570	240	25.4	74.9	68.1	500	700
FW75200	200	63.5	67.4	12	80	400	170	31.75	78	70	-	750
FW75250	250	63.5	67.4	12	80	470	200	31.75	78	70	-	750
FW75300	300	63.5	67.4	12	80	570	240	31.75	78	70	-	750
FW100250	250	70	75	16	90	470	200	35	90.8	83.2	-	1000
FW100300	300	70	75	16	90	570	240	35	90.8	83.2	-	1000
FW100350	350	70	75	16	90	670	280	35	90.8	83.2	-	1000
FW120300	300	75	82.5	16	100	570	240	38.5	95.5	88	-	1200
FW120350	350	75	82.5	16	100	670	280	38.5	95.5	88	-	1200
FW140350	350	82	85	16	115	670	280	41.75	99.3	90.2	-	1400
FW160350	350	86	92.5	19	120	670	280	44.5	110.3	101.2	-	1600
