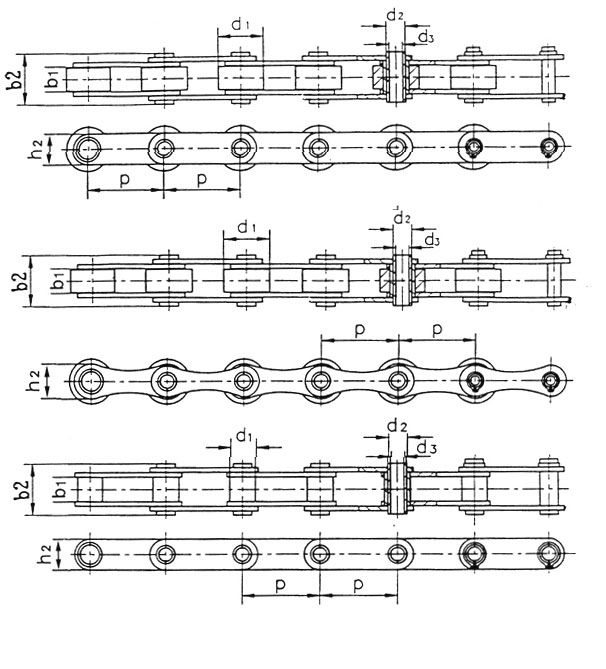

链  号	节距	滚子外径	内节内宽	销轴外径	销轴内径	销轴长度	内链板高度	抗位载荷
	P	d1(max)	b1(min)	d2	d3(min)	b2	h2(max)	Q
	mm	mm	mm	mm	mm	mm	mm	KN
8OHP	25.4	15.88	15.80	11.67	8.10	32.6	24.20	59.00
C2052HP	31.75	19.05	9.53	7.03	5.20	20.6	15.30	17.64
1.1260	41.75	17.00	20.50	11.10	8.35	36.5	21.40	27.00
3124/50PF	50.00	31.00	15.00	13.35	10.50	36.5	25.00	40.18
1201/205PF	50.00	25.00	12.00	8.35	6.30	26.5	20.00	31.36
C2120HP	76.20	31.75	15.20	13.50	8.30	58.0	28.00	59.20
250HP	250.00	65.00	36.50	21.5	15.95	78.9	45.00	186.20
A08D1	50.80	31.75	15.24	13.97	9.65	37.0	26.16	27.00
A10D1	63.50	31.75	15.24	13.97	9.65	37.0	26.16	26.68
A12D1	76.20	31.75	15.24	13.97	9.65	37.0	26.16	26.68
A24D1	152.40	31.75	15.24	13.97	9.65	37.0	26.16	27.00
HC240040	101.60	66.70	25.40	26.92	19.56	57.2	50.80	190.00
HC120040	101.60	47.60	19.10	19.05	13.25	43.4	38.10	100.00
HC240060	152.40	66.70	25.40	26.92	19.56	57.2	50.80	190.00
HC120060	152.40	47.60	19.10	19.05	13.25	43.4	38.10	100.00
