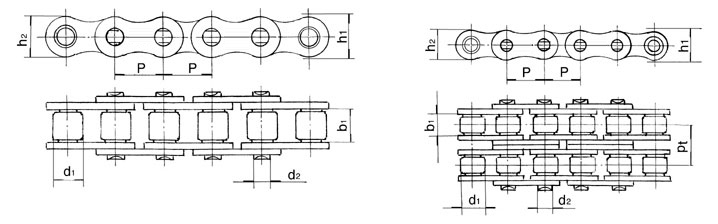

 B系列滚子链 B SERIES ROLLER CHAIN |
|
 |
| |
ISO606 DIN8187 GB1243
| 链号 |
节距 |
滚子外径(最大) |
内链节内宽（最小） |
排距 |
销轴直径 |
内链板高度 |
链条通道高度 |
抗拉载荷 |
重量 |
| 单排 |
双排 |
三排 |
单排 |
| P |
P |
d1(min) |
b1(min) |
Pt |
d2(min) |
h2 |
h1(min) |
Q |
Q |
Q |
q |
| in |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
KN |
KN |
kg/m |
| 16B |
1" |
25.40 |
15.88 |
17.02 |
31.88 |
8.28 |
21.08 |
21.34 |
60.00 |
106.00 |
160.00 |
2.7 |
| 20B |
1.1/4" |
31.75 |
19.05 |
19.56 |
36.45 |
10.19 |
26.42 |
26.68 |
95.00 |
170.00 |
250.00 |
3.6 |
| 24B |
1.1/2" |
38.10 |
25.40 |
25.40 |
48.36 |
14.63 |
33.4 |
33.73 |
160.00 |
280.00 |
425.00 |
6.7 |
| 28B |
1.3/4" |
44.45 |
27.94 |
30.99 |
59.56 |
15.9 |
37.08 |
37.46 |
200.00 |
360.00 |
530.00 |
8.3 |
| 32B |
2" |
50.80 |
29.21 |
30.99 |
58.55 |
17.81 |
42.29 |
42.72 |
250.00 |
450.00 |
670.00 |
10.5 |
| 40B |
2.1/2" |
63.50 |
39.37 |
38.10 |
72.29 |
22.89 |
52.96 |
53.49 |
355.00 |
630.00 |
950.00 |
16 |
| 48B |
3" |
76.20 |
48.26 |
45.72 |
91.21 |
29.24 |
63.88 |
64.52 |
560.00 |
1000.00 |
1500.00 |
25 |
| 56B |
3.1/2" |
88.90 |
53.98 |
53.34 |
106.60 |
34.32 |
77.85 |
78.64 |
850.00 |
1600.00 |
2240.00 |
35 |
| 64B |
4" |
101.6 |
63.5 |
60.96 |
119.89 |
39.4 |
90.17 |
91.08 |
1120.00 |
2000.00 |
3000.00 |
60 | |
| |
|
|
|
|
